> EVEDENCE HOLDER
> Holders flexibility
New improvement: It’s easy to mount the brackets and Screw Clamp on the ground plane and fix them in the desired pose.
Two-brackets for mounting on the Ground Plate
can be adjustable to 0-30 mm
Two-brackets for mounting on the Ground Plate
can be adjustable to 20-70 mm
Two-brackets for mounting on the Ground Plate
can be adjustable to 65-155 mm

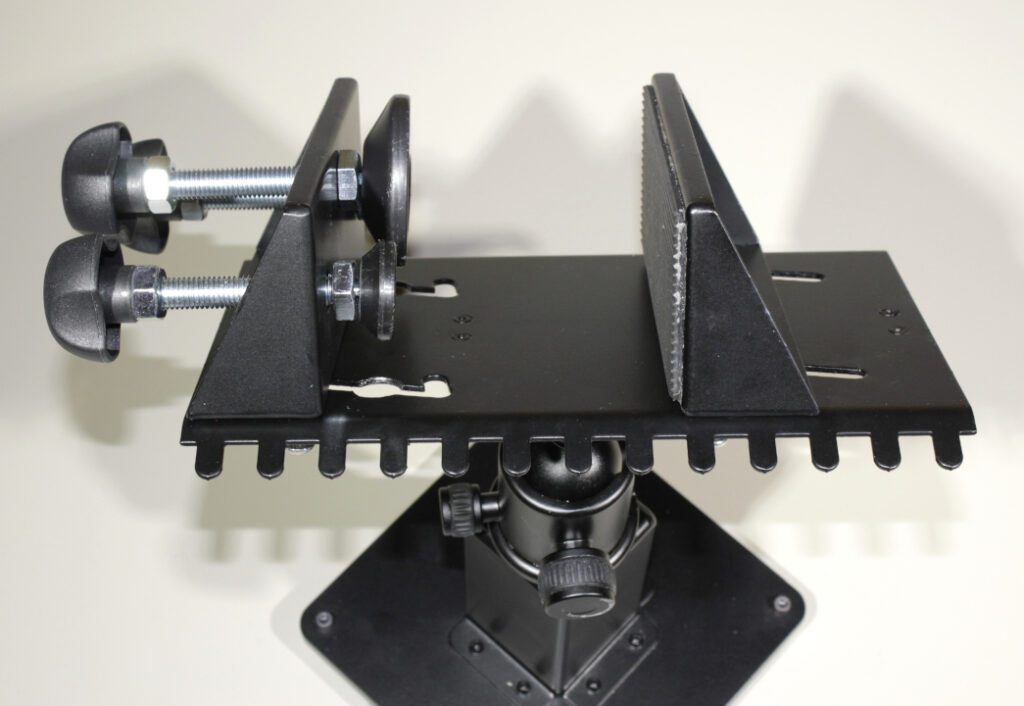

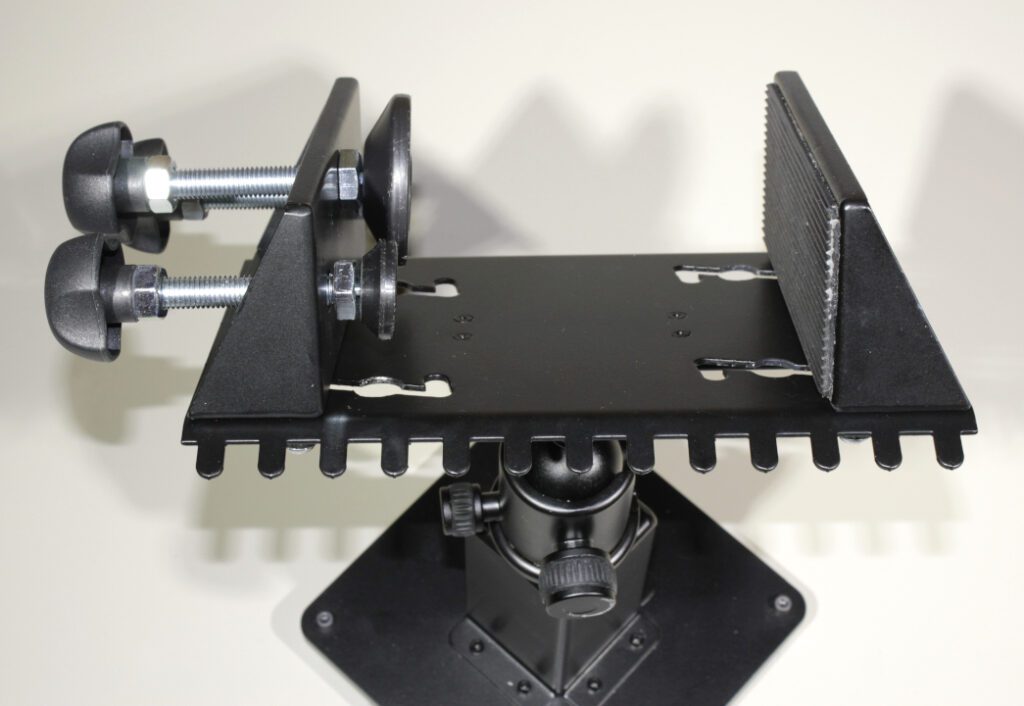

It is easy to mount the brackets vise on the ground plane and fix them to the desired pose.
Example:
The Vise Parts are mounted on the Ground Plate. A pistol is fixed with the vise for fingerprint photographing.

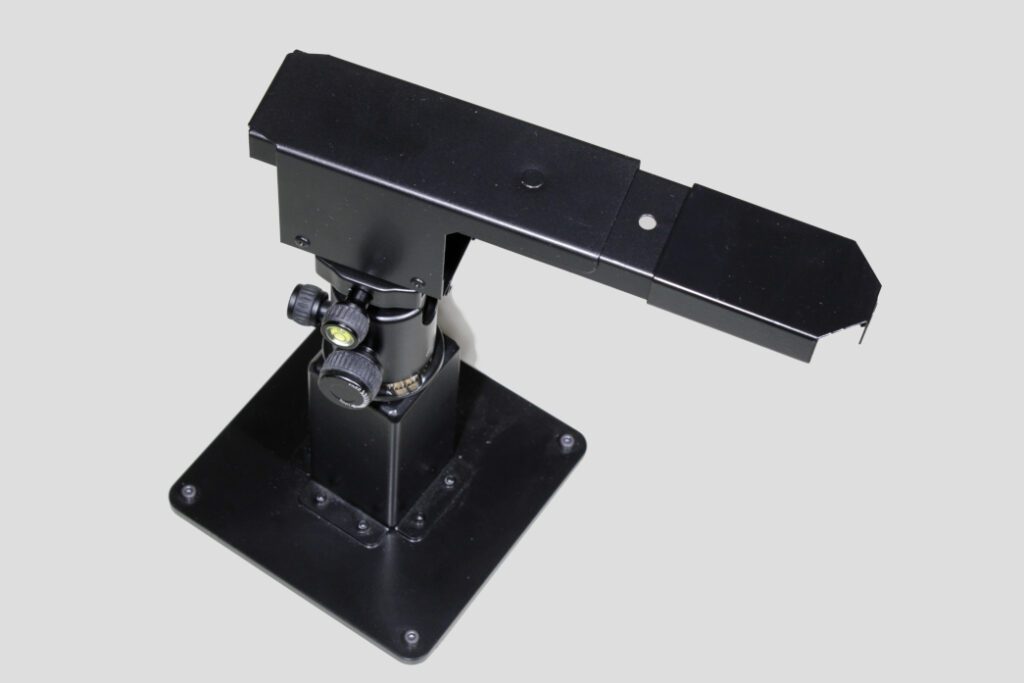

The shoe holder is easy to adjust for different shoe sizes with a screw under the profile.
The length of the shoe holder can be adjusted to suit the shoe.
The heavy-duty spring at the front of the shoe holder loads the sole of the shoe with tension to keep it level.
Example.
Heavy objects such as hammers can be fixed with the two bar clamps mounted on the Magnet profile for photographing fingerprint evidence.
The strong ball head with Magnet Profile for the mounting and the two bar clamps can be adjusted to 90 to 45 degrees in the holes in the sides of the Profile.
The bar clamps’ contact points are covered by a rubber profile with a textured surface, providing grip and preventing damage to the evidence.
When adjusting the bar clamps, you can use one hand, making it easy to balance the object while fixing it.

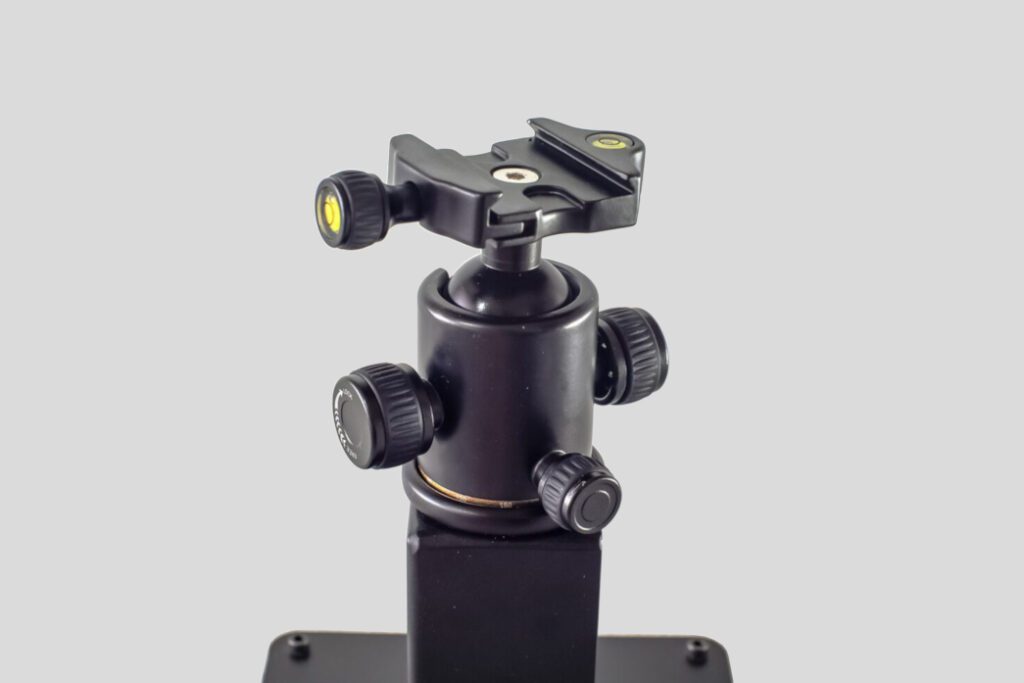

Strong ball head with double locking of the ball joint. Operation movement, 360-degree circular movement
with 90-degree tilt and spirit level

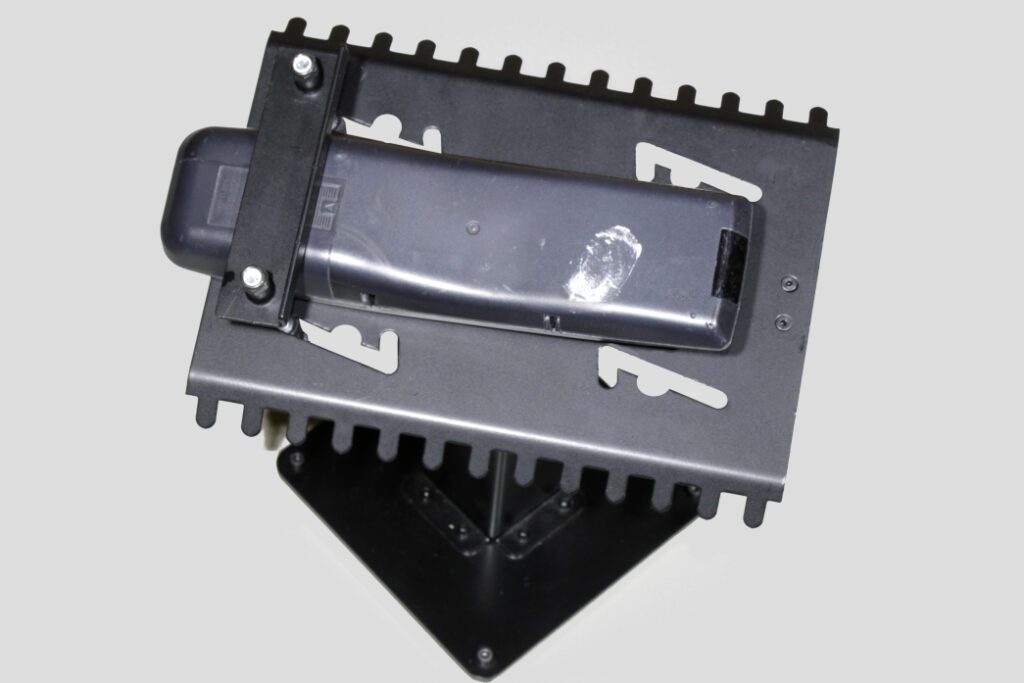

Example:
one remote control can be fixed with a screw clamp mount on the mount plate for photography, such as fingerprint evidence.
The standard platform in the kit is stable with a strong ball head This solid steel stage offers excellent support for your evidence.
Supports 360 degrees rotation and 90 degrees tilt. Two spirit levels track the relative orientation of the ball head.

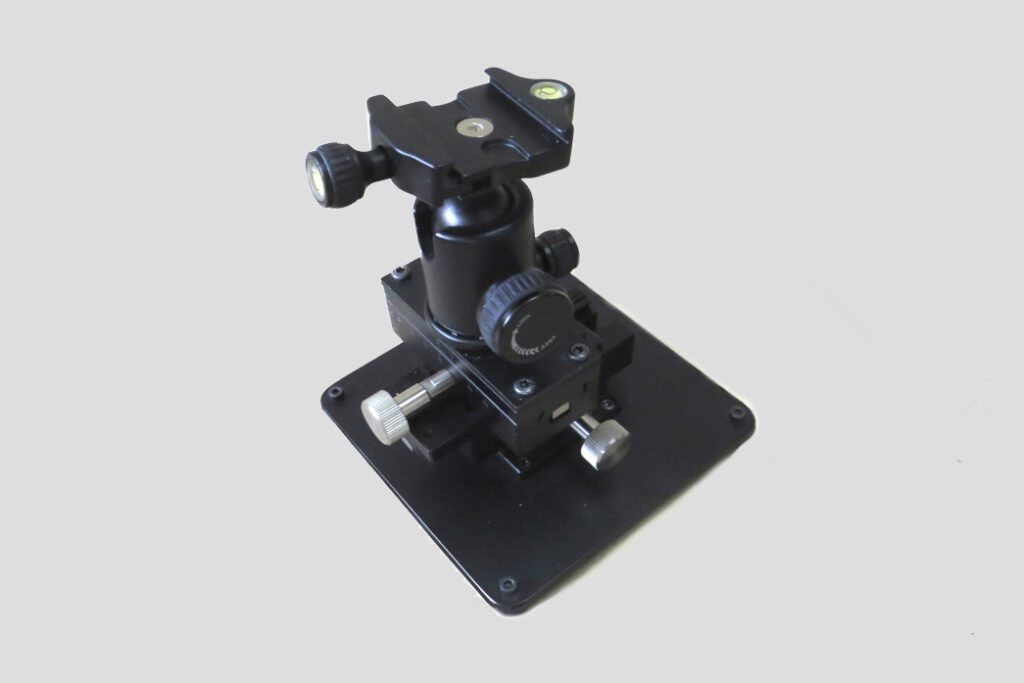

We offer a separate accessory platform for microscopes use.
The platform is stable with a strong ball head. The platform has a 60 mm X-Y rack movement, the scale for each dial is in millimeters.
360-degree circular movement and 90-degree tilt and Two spirit levels track the relative orientation of the ball head.
Example:
The inverted tweezers can be attached to the
magnetic profile to photograph small, fragile
evidence such as a paint flake. The soft silicone rubber tips on the tweezers are removable.

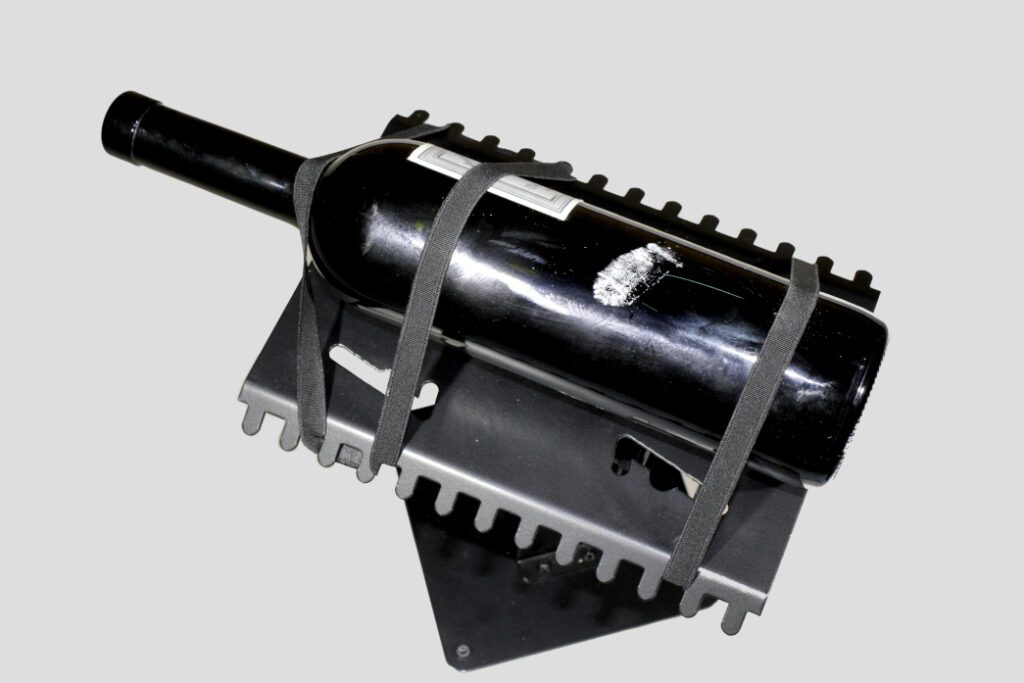

Example:
A bottle with fingerprint evidence is fixed
with a Fabric rubber band on the Ground Plate.
